PLYWOOD
SRG WISTARA PLYWOOD
SRG WISTARA PLYWOOD

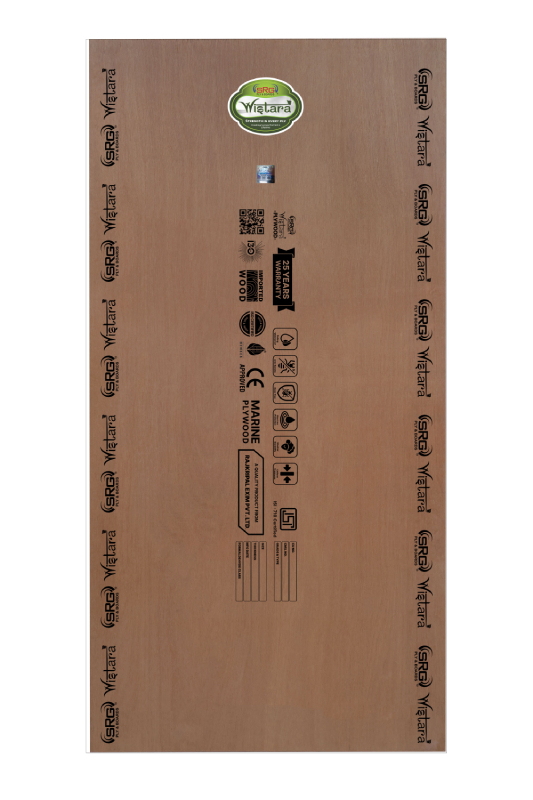

SRG Wistara Plywood is manufactured using the highest quality hard core, providing it with unparalleled stiffness and strength.

Each core veneer is treated by a phosphoric compound directly with adhesive during processing. Available within a very competitive price range, SRG Wistara comes with 16* years of warranty.

Born tough as per IS 710: 2010, Wistara BWP Grade Plywood is manufactured using the best quality hard core, and is bonded with superior quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant. The process and parameters of resin manufacturing are controlled and guided by IS 848: 2006.

Designed to withstand just about any climatic condition, Wistara BWP Grade Plywood is generally used in making partitions, paneling, Kitchen Furniture, corridors, vehicle and cargo hold covers, and so on.

It comes with 16* solid years of warranty.


Moisture content : 8-12% Screw holding strength : >2500N
Specific gravity : 750 kg/cbm Nail holding strength : >600 N
Glue shear strength : > 1600 N Water absorption : <1%
Modulus of rupture :
Along the face 55 N/mm²,
Across the face 50 N/mm²
Modulus of elasticity :
Along the face 8500 N/mm²,
Across the face 5000 N/mm²
Mycological test : 1300 N Adhension of plies : Excellent
Tensile strength :
Parallel to face: > 490 N
Perpendicular to face: > 1400 N
Water resistance : 72 hrs boiling at 100°C±2°C

* All specifications on standard climate and temperature.

SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,9 MM,12 MM,16 MM,19MM

Wistara BWR (Boiling Water Resistance) Grade Plywood is bonded with phenol formaldehyde synthetic resin. The resin used here is manufactured at SRG's own state-of-the-art manufacturing plant, wherein the process and parameters of resin manufacturing are controlled and guided as per IS 848: 2006.

This plywood is suitable for making Movie Set, partitions, paneling, ceilings, furniture and more, being able to withstand climatic changes.

It comes with 10*years of warranty.


Moisture content : 9% Screw holding strength : 2400 N
Glue adhesion : Excellent Nail holding strength : 500 N
Modulus of rupture :
Along the face 35.79 N/mm²,
Across the face 48.63 N/mm²
Modulus of elasticity :
Along the face 4660 N/mm²,
Across the face 3778.84 N/mm²
Specific gravity : 650 kg /cbm Water resistance : 3 cycle boiling at 60°C

Adhesion of plywood : Excellent



* All specifications on standard climate and temperature.

SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM :6 MM,9 MM,12 MM,16 MM,19MM

16

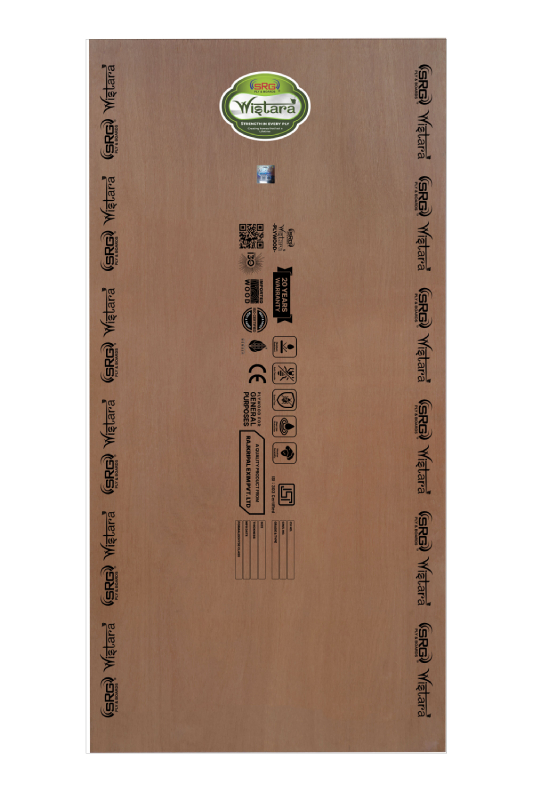

Wistara MR( Moisture Resistance grade) is bonded with synthetic amino plus resin. The resin used here is manufactured at SRG's own innovatory manufacturing plant, wherein the process and parameters of resin manufacturing are controlled and guided as per IS 848 : 2006.

This plywood is suitable for making Indoor Furniture, ceilings, furniture and more.

It comes with 10*years of warranty.


Moisture content : 9% Screw holding strength : 2400 N
Glue adhesion : Excellent Nail holding strength : 500 N
Modulus of rupture :
Along the face: 35.79 N/mm²,
Across the face: 48.63 N/mm²
Modulus of elasticity :
Along the face: 4660 N/mm²,
Across the face: 3778.84 N/mm²
Specific gravity : 650 kg /cbm Water resistance : 3 cycle boiling at 60°C

Adhesion of plywood : Excellent



* All specifications on standard climate and temperature.

SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,8 MM,12 MM,15 MM,18 MM
