PLYWOOD

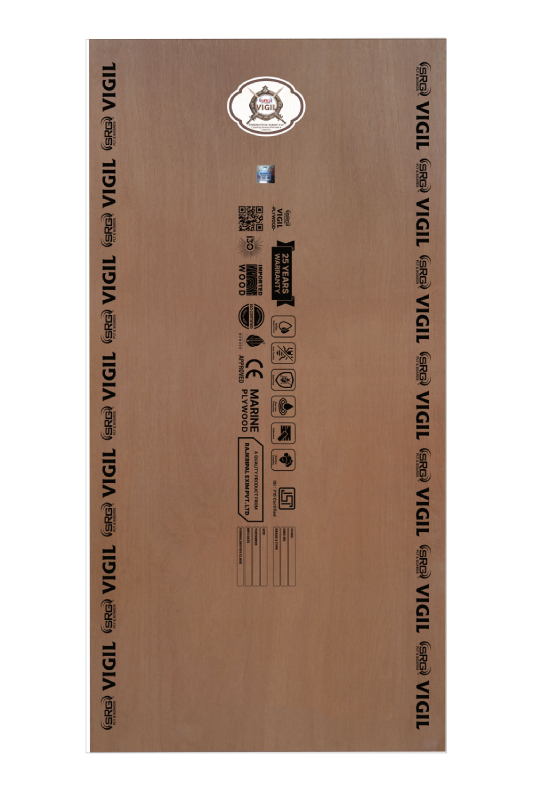

SRG VIGIL PLYWOOD
SRG VIGIL PLYWOOD

SRG vigil Grade Plywood is manufactured from the most superior quality hard core that displays a significant stiffness and high strength. Only selected hardwood timber goes into making this beautiful range of plywood.

It is bonded, at a very high pressure and temperature, through hot press. Each core veneer is treated by a phosphoric compound directly with adhesive during processing.

Part of our eco-friendly product range, SRG Vigil Plywood comes with 16* years of warranty.

Born tough as per IS 710: 2010, Vigil BWP Grade Plywood is bonded with finest quality phenol formaldehyde resin of BWP grade, that is manufactured at our own highly modern resin plant. The process and parameters of our resin manufacturing are strictly controlled and guided by IS 848: 2006.

Rough to withstand many distinct climatic conditions, this plywood gets used in making partitions, paneling, cabins, corridors, vehicle and cargo hold covers, amongst other things.

It comes with 16* years of warranty.


Moisture content : 8-12% Screw holding strength : >2500N
Specific gravity : 750 kg/cbm Nail holding strength : >600 N
Glue shear strength : > 1600 N Water absorption : <1%
Modulus of rupture :
Along the face: 55 N/mm²,
Across the face: 50 N/mm²
Modulus of elasticity :
Along the face: 8500 N/mm²,
Across the face: 5000 N/mm²
Mycological test : 1300 N Adhension of plies : Excellent
Tensile strength :
Parallel to face: > 490 N
Perpendicular to face: > 1400 N
Water resistance : 72 hrs boiling at 100°C±2°C

* All specifications on standard climate and temperature.

SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,9 MM,12 MM,16 MM,19MM

VIGIL BWR (Boiling Water Resistance) Grade is bonded with phenol formaldehyde synthetic resin. The resin used here is manufactured at the resin manufacturing plant owned by SRG. The process and parameters of our resin manufacturing are stringently controlled and guided by IS 848: 2006.

VIGIL is suitable for making partitions, panelling, ceilings, and so on, owing to its ability to withstand climatic condition.

It comes with 10* years of warranty.


Moisture content : 9% Screw holding strength : 2400 N
Glue adhesion : Excellent Nail holding strength : 500 N
Modulus of rupture :
Along the face: 35.79 N/mm²,
Across the face: 48.63 N/mm²
Modulus of elasticity :
Along the face: 4660 N/mm²,
Across the face: 3778.84 N/mm²
Specific gravity : 650 kg /cbm Water resistance : 3 cycle boiling at 60°C

Adhesion of plywood : Excellent



* All specifications on standard climate and temperature.

SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,9 MM,12 MM,16 MM,19MM

16

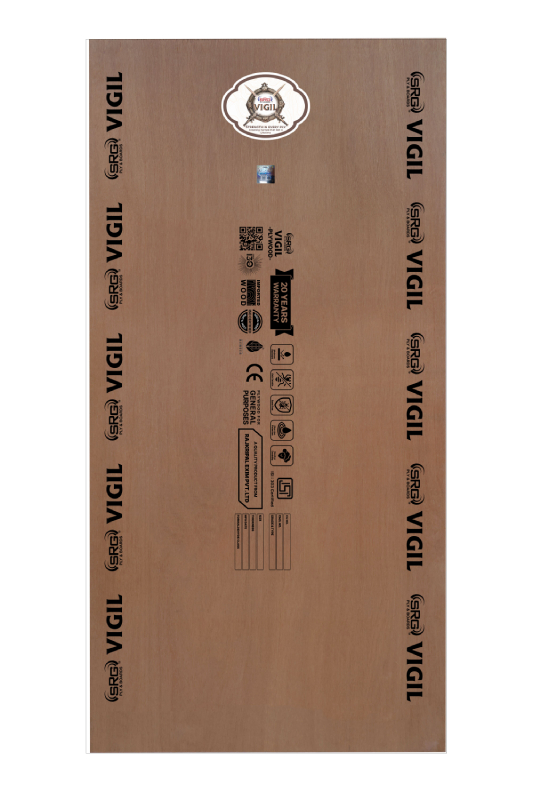

VIGIL MR( Moisture Resistance Grade) is bonded with synthetic amino plus resin. The resin used here is manufactured at the resin manufacturing plant owned by SRG. The process and parameters of our resin manufacturing are stringently controlled and guided by IS 848: 2006.

VIGIL is suitable for making partitions, panelling, ceilings, Indoor furniture’s and so on.

It comes with 10* years of warranty.


Moisture content : 9% Screw holding strength : 2400 N
Glue adhesion : Excellent Nail holding strength : 500 N
Modulus of rupture :
Along the face: 35.79 N/mm²,
Across the face: 48.63 N/mm²
Modulus of elasticity :
Along the face: 4660 N/mm²,
Across the face: 3778.84 N/mm²
Specific gravity : 650 kg /cbm Water resistance : 3 cycle boiling at 60°c

Adhesion of plywood : Excellent



* All specifications on standard climate and temperature.

SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,8 MM,12 MM,15 MM,18 MM
