PLYWOOD
Omen Plywood is manufactured using the highest quality hardcore like Eucalyptus and plumber core, providing unparalleled stiffness and strength.
Each core veneer is treated directly with adhesive during processing. Available within a very competitive price range.

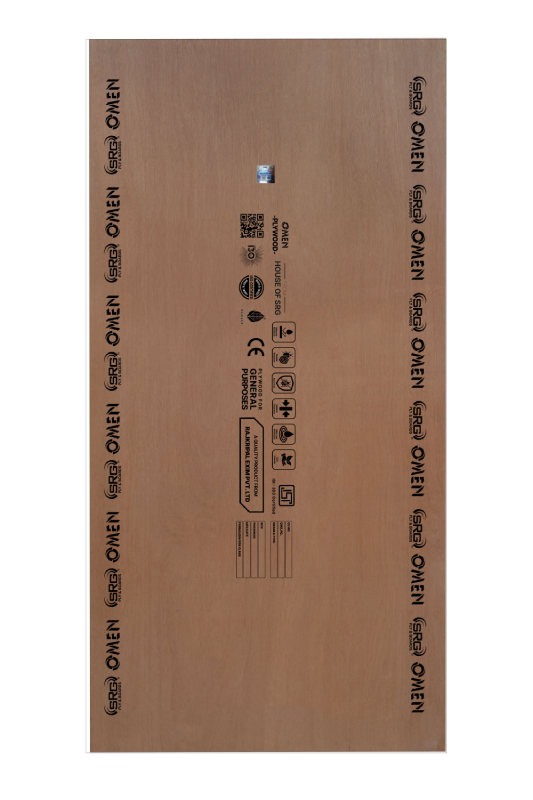

Born tough Born tough Omen BWP Grade Plywood (Confirming IS:710) is manufactured using the best quality hardcore blue gum (Eucalyptus globulus) and the plumber core is bonded with superior quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant. The resin manufacturing process and parameters are controlled and guided by IS 848: 2006.
Designed to withstand just about any climatic condition, Omen BWP Grade Plywood is generally used in making partitions, paneling, cabins, corridors, vehicle, and cargo hold covers, and so on. is manufactured using the best quality hardcore blue gum (Eucalyptus globulus) and the plumber core is bonded with superior quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant. The resin manufacturing process and parameters are controlled and guided by IS 848: 2006.
Designed to withstand just about any climatic condition, Omen BWP Grade Plywood is generally used in making partitions, paneling, cabins, corridors, vehicle, and cargo hold covers, and so on.
 Moisture content : 8-12% |
 Screw holding strength : >200 kg |
 Specific gravity : 600 kg/cbm |
 Nail holding strength : >60 kg |
 Glue shear strength : > 138 kg |
 Water absorption : <<1% |
 Modulus of rupture : Along the face 52 N/sqmm, Across the face 35 N/sqmm |
 Modulus of elasticity : Along the face 7600 N/mm sq, Across the face 4500 N/mm sq |
 Mycological test : > > 100 kg |
 Adhension of plies : Excellent |
 Tensile strength : Parallel to face: > 480 N Perpendicular to face: > > 390 N |
 Water resistance :
72 hrs boiling at 100°C±2°C |
* All specifications on standard climate and temperature.
SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,9 MM,12 MM,16 MM,18MM

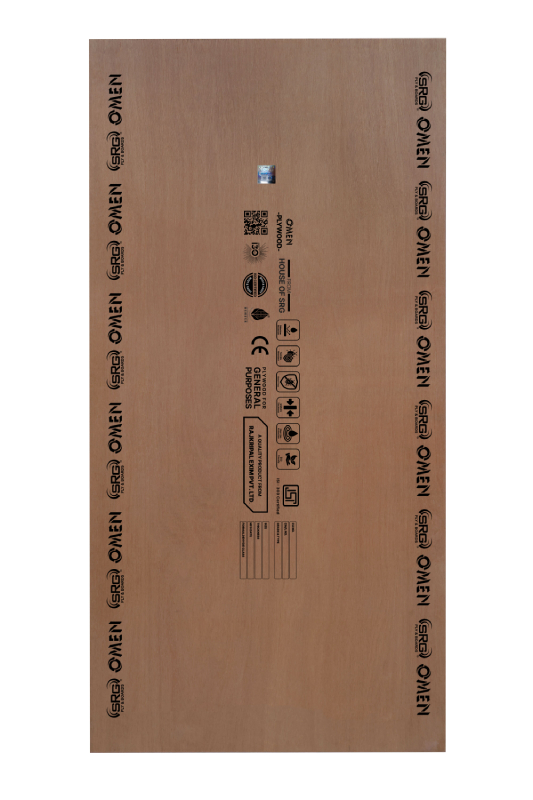

Omen Moisture Resistance grade is bonded with synthetic amino plus resin. The resin used here is manufactured at SRG's own state-of-the-art manufacturing plant, wherein the process and parameters of resin manufacturing are controlled and guided as per IS 848: 2006. This plywood is suitable for making partitions, paneling, ceilings, furniture, and more, being able to withstand climatic changes.
| Moisture content : 8% |
Screw holding strength : 240 kg |
 Glue adhesion : Excellent |
Nail holding strength : 50 kg |
| Modulus of rupture : Along the face 37 N/mm², Across the face 49 N/mm² |
Modulus of elasticity : Along the face 4300 N/mm², Across the face 3699 N/mm² |
| Specific gravity : 550 kg /cbm |
Water resistance :
3 cycle boiling at 60°°C±2°C
|
* All specifications on standard climate and temperature.
SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,9 MM,12 MM,16 MM,18MM
