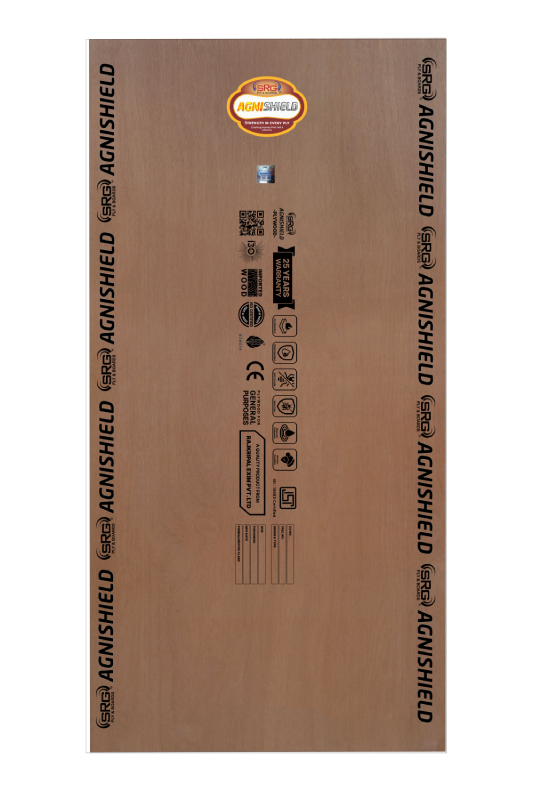

PLYWOOD
SRG Fire Retardant plywood offer the safety feature like delayed temperature rise and reduction in gas evaporation resulting in restriction flame spread, this is ideal for use in areas where fire accident risk high, Fire retardant chemical treatment: type 5
USES: SUITABLE FOR COMMERCIAL KITCHENS, CINEMAHALL, HIGH-RISE BUILDINGS, BUSES, RAILWAY COACHES ETC.
BORN TOUGH AS PER IS 5509:2021
BORNTOUGH AS PER IS: 5509:2021, SRG AGNI SHIELDFIRE RETARDANT GRADE IS MANUFACTURED USING THE BEST QUALITY HARDWOOD. SPECIAL RESIN AND SPCEICAL CHEMICAL SOLUTION IS MADE FOR SRG AGNISHIELD IN SPECIFIC KETTEL DESIGNED FOR STRONG BOND IN HOUSE RESIN PLANT. TIMING IS MOST IMPORTANT AT THE TIME OF FIRE. SRG AGNI SHIELD TAKES CARE OF THIS THROUGH ITS STRENGTH. THIS IS IDEAL FOR USE IN AREAS WHERE FIRE ACCIDENT RISK IS HIGH.
SPECIAL FEATURES:
- LOW FLAMMABILITY AND LESSER SMOKE GENERATION.
- LOW EMISSION.
- HIGH STRENGTH.
- MORE THAN JUST WATER RESISTANT.
- HIGH FLAME PENETRATION TIME.
- FR CHEMICAL TREATMENT: TYPE 5
- 25 YEARS OF WARRANTY.
- DELAY TEMPATURE RISE
 Water resistance :
8-16 Hrs Boiling |
 Drying 3 Times : Excellent |
 Squareness : 0.95mm |
 Moisture : 10-20% |
 Glue shear strength : > 1600 N |
 Water absorption : <1% |
 Modulus of rupture : Along the grain: Avg. 50n, Ind. 39 n/mm Across the grain: Avg. 35n, Ind. 30n/mm |
 Modulus of elasticity : Along the grain: Avg. 6000n, Ind. 5500n/mm Across the grain: Avg. 3500n, Ind. 3000n/mm |
 Workmenship : Satisfactory |
 Edge Straightness : 0.50mm |
 Fire Retardant Properties : Flammability: 48 min. Flame Penetration: 59.6 min. Rate of Burning: 37 min, (weight loss 30 to 70%) |
 Density :
0.64 Gram/C.C |
SIZE IN FEET: 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,9 MM,12 MM,19 MM, 25MM
