PLYWOOD
SRG uses only the most premium quality tropical hardwood that showcases high strength and stiffness to manufacture Captor Grade Plywood. We bond this plywood, at high pressure and temperature, through a thermo hot press, which gives rise to its incredible structural strength.
SRG Captor comes with a warranty period of 21 *years.

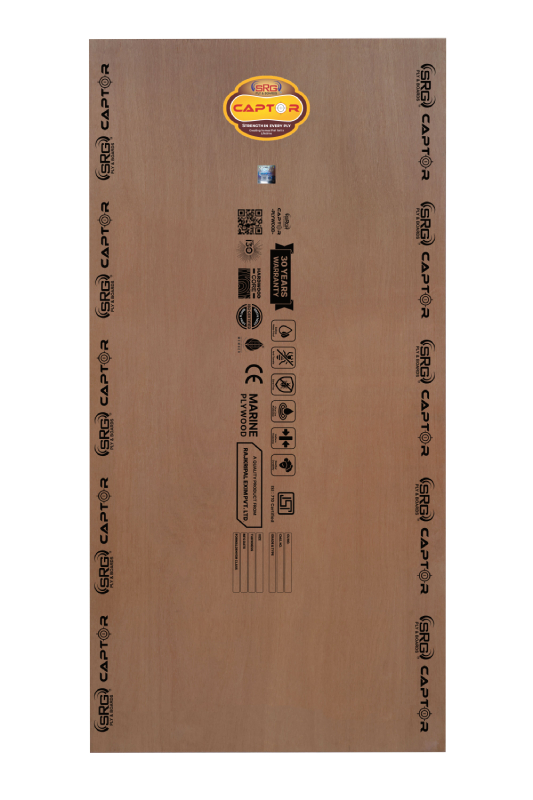

Our BWP Grade Captor Plywood is bonded with BWP-grade phenol formaldehyde synthetic resin of exceptional quality with the process as well as parameters of resin manufacturing controlled and guided by IS 848:2006.
Born tough, Captor BWP Grade Plywood is designed to withstand any climatic condition. It is used in construction, cooling tyre, public hoarding signboards, and for structural applications, amongst other things.
It comes with 21* years of warranty.
 Moisture content : 8-12% |
 Screw holding strength : >2500N |
 Specific gravity : 800 kg/cbm |
 Nail holding strength : 600 N |
 Glue shear strength : > 1400 N |
 Water absorption : <1% |
 Modulus of rupture : Along the face 55 N/mm², Across the face 45 N/mm² |
 Modulus of elasticity : Along the face 7900 N/mm², Across the face 6000 N/mm² |
 Mycological test : > 1350 N |
 Adhension of plies : Excellent |
 Tensile strength : Parallel to face: > 550 N Perpendicular to face: > 440 N |
 Water resistance : 72 hrs boiling at 100°C±2°C |
 Retention preservative : 12.8 kg |
* All specifications on standard climate and temperature.
SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,9 MM,12 MM,16 MM,19MM
BWR (Boiling Water Resistance) Grade Captor Plywood is bonded with phenol formaldehyde resin of BWR grade, outstanding quality, manufactured at SRG's own resin plant. The process and parameters of resin manufacturing are controlled and guided by IS 848: 2006.
This grade Plywood is suitable for making partitions, paneling, ceilings, and more, as it can easily withstand climatic changes.
It comes with 10* years of warranty.
| Moisture content : 8% |
Screw holding strength : >2000N |
| Specific gravity : 800 kg/cbm |
Nail holding strength : 600 N |
| Glue shear strength : >1400 N |
Water absorption : <1% |
| Modulus of rupture : Along the face 45 N/mm², Across the face 42 N/mm² |
Modulus of elasticity : Along the face 6000 N/mm², Across the face 5000 N/mm² |
| Mycological test : > 1150 N |
 Adhesion of plywood : Excellent |
| Water resistance : 8 hrs boiling & 16 hrs dry 3 cycle |
 Glue adhesion : Excellent |
* All specifications on standard climate and temperature.
SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,9 MM,12 MM,16 MM,19MM

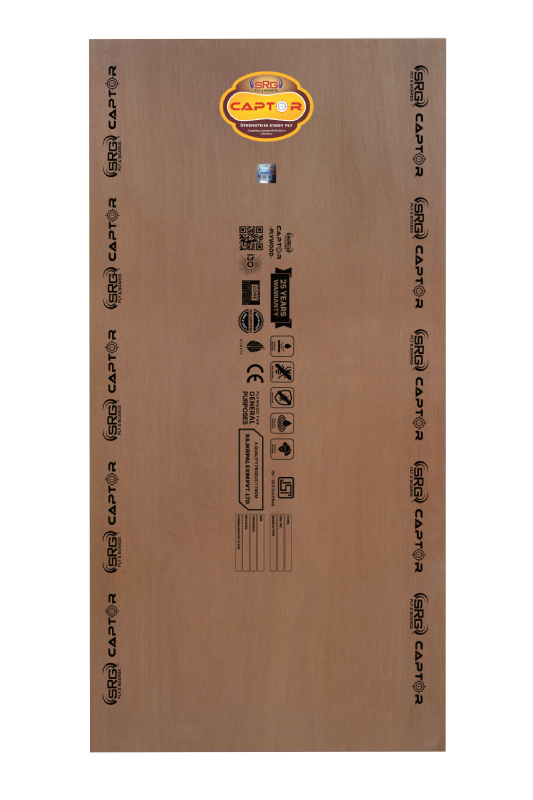

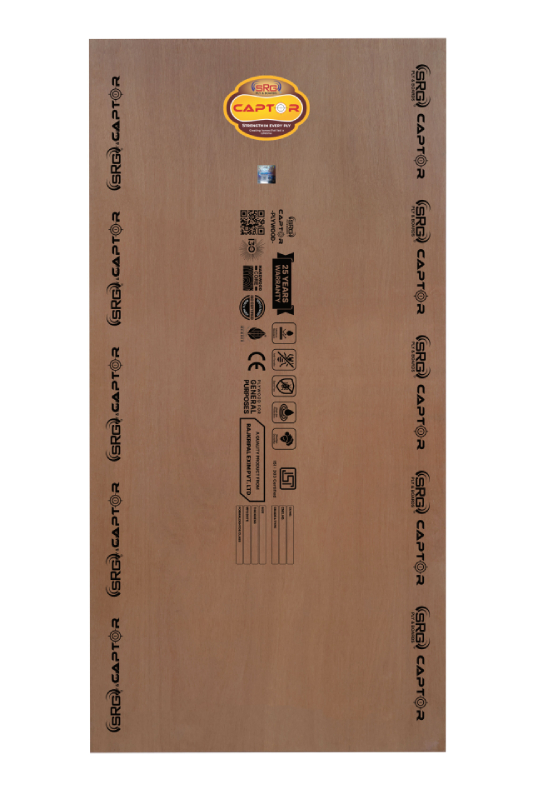

Captor MR (Moisture Resistant) is bonded with synthetic amino plus resin, excellent quality, and manufactured at SRG's own resin plant. The process and parameters of resin manufacturing are controlled and guided by IS 848: 2006.
This grade Plywood is suitable for making cabinets, study, offices, and more.
It comes with 10* years of warranty.
| Moisture content : 7% |
Screw holding strength : >2500N |
| Specific gravity : 750 kg/cbm |
Nail holding strength : 700 N |
| Modulus of rupture : Along the face 35 N/mm², Across the face 48 N/mm² |
Modulus of elasticity : Along the face 4500 N/mm², Across the face 3700 N/mm² |
| Glue adhesion : Excellent |
Adhesion of plywood : Excellent |
| Water resistance : 3 cycle boiling at 60°C±2°C |
* All specifications on standard climate and temperature.
SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,8 MM,12 MM,15 MM,18MM
