PLYWOOD
SRG Premium, the most popular amongst SRG Plywood brands, gets its incredible strength and precision from the highest quality of imported timber which it is manufactured from.
Treated by preservative chemicals at different stages, SRG Premium has been designed to withstand just about all climatic conditions.

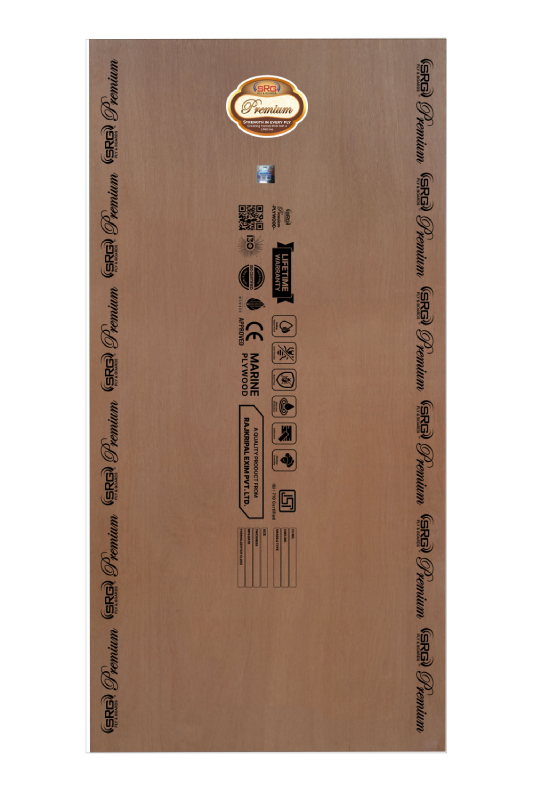

It comes in two distinct grades - Boiling Water Proof (BWP) and Moisture Resistant (MR).Made using the most premium quality imported timber, SRG BWP Grade Plywood is known for its unparalleled stiffness and high strength.
With each core veneer treated by phosphoric compound with adhesive, directly during processing, the product comes with a 25*year warranty. It is usually ship floors, boats, corridors, as well as cargo hold covers that make use of this incredibly strong plywood from SRG.
SRG BWP Grade Plywood is bonded with high quality phenol formaldehyde resin of BWP grade, manufactured at our own resin plant, following the process and strict parameters of resin manufacturing, as controlled and guided by IS 848: 2006.
Moisture content : 8-12% | Screw holding strength : >2500N |
Specific gravity : 850 kg/cbm | Nail holding strength : >600 N |
Glue shear strength : > 1600 N | Water absorption : <1% |
Modulus of rupture : Along the face 55 N/mm², Across the face 50 N/mm² |
Modulus of elasticity : Along the face 8500 N/mm², Across the face 5000 N/mm² |
Mycological test : > 1300 N | Adhension of plies : Excellent |
Tensile strength : Parallel to face: > 600 N Perpendicular to face: > 510 N |
Water resistance : 72 hrs boiling at 100°C±2°C |
* All specifications on standard climate and temperature.
SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,9 MM,12 MM,16 MM,19MM

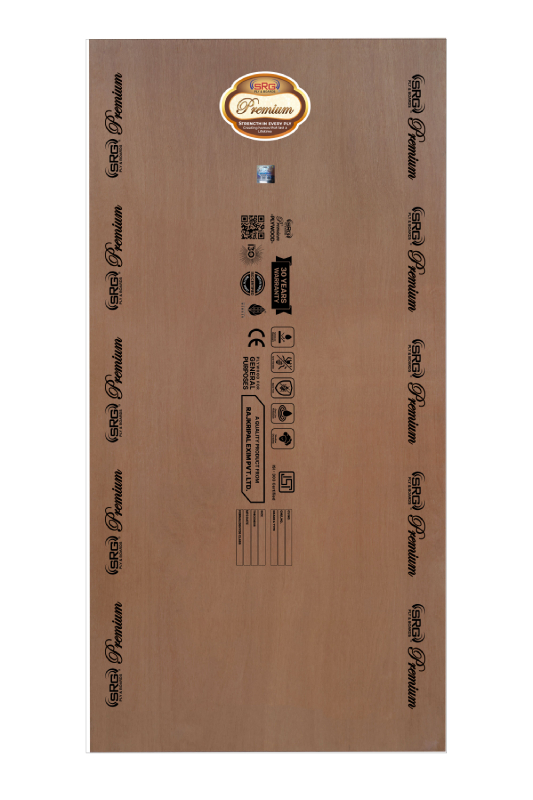

The moisture-resistant variant of SRG Premium Plywood is manufactured from the best quality imported timber, when it is bonded with synthetic amino plus resin, with the process and parameters of resin manufacturing strenuously controlled and guided by IS 848 : 2006.
SRG MR Grade Plywood comes with a 15*-year warranty surpassing every parameter under IS 303 : 1989. The adhesive used in making this brilliant MR variant has an organophosphorus compound mixed with it to protect the surface against attack from any dangerous microorganisms.
Born tough, SRG MR works best for making furniture, wardrobe , partitions, cabins, and so on.
Moisture content : 6.77% | Screw holding strength : 2600N |
Glue adhesion : Excellent | Nail holding strength : 600 N |
Modulus of rupture : Along the face 36.82 N/mm², Across the face 49.43 N/mm² |
Modulus of elasticity : Along the face 4400.91 N/mm², Across the face 3778.84 N/mm² |
Specific gravity : 750 kg /cbm | Water resistance : 3 cycle boiling at 60°°C±2°C |
* All specifications on standard climate and temperature.
SIZE IN FEET : 8X4,7X4,6X4,8X3,7X3,6X3
THICKENSS IN MM : 6 MM,8 MM,12 MM,15 MM,18MM
